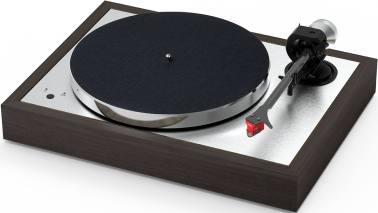

Pro-Ject The Classic Evo Turntable in Eucalyptus

Sub-chassis turntable with 9“ carbon/alu sandwich tonearm
The Classic meets the 175 VPO to melt design-ideas

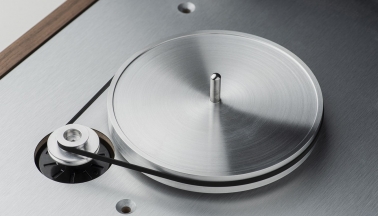

The new Classic Evo is based on the successful EISA Award winner Pro-Ject The Classic. The main improvement is the sub-platter, where we used the experience we gained from designing the 175 – Vienna Philharmonic Recordplayer to add key changes to the Classic Evo. The main bearing construction we use is a similar system as the one on the Vienna Philharmonic Recordplayer. For improved comfort, an electronic speed change was built in, which lets you switch from 33 to 45 rpm (and vice versa) with the push of a button. Compared to the old Classic, we improved the subchassis; we tried to make it heavier and stiffer to reduce resonances. Isolating the platter and tonearm from the resonances of the motor and main plinth is the target. The heavy aluminium main platter construction utilises advanced thermo plastic elastomers (TPE) for optimising resonance behaviour.

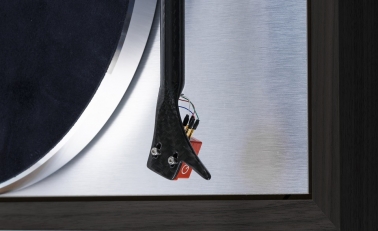

The tonearm tube is made out of a sandwich of carbon and aluminium: carbon for stiffness and speed, alu for better damping. The bearing has been upgraded to the same type that is used on our Pro-Ject CC EVO tonearms. It facilitates frictionless vertical and horizontal movement, guaranteeing precise tracking across the entire duration of the record. The counterweight incorporates a TPE* damper which allows us to reduce the amplitude of the tonearm cartridge resonance frequency by 50%. As typical for Pro-Ject we offer also azimuth and VTA adjustment to use a variety of cartridges.

We supply as standard the Ortofon Quintet Red moving coil cartridge. However, as the tonearm offers excellent damping and flexibility as well, its effective mass can be called middle heavy, so it is also a very good partner for MC cartridges.

In the box:
The Classic Evo with Ortofon Quintet Red
Connect it E RCA Cable
Dust cover
Felt mat
Adapter for 7“ singles
Round drive belt for 78 r.p.m.
Power supply, allen key, stylus pressure gauge

Features

• Diamond cut precision alu sub-platter
• Improved sandwich subchassis
• Ortofon Quintet Red cartridge pre-installed
• Electronic speedcontrol (33/45 rpm)
• Belt drive with electronic speed control 33/45 rpm
• Height adjustable decoupling feet
• Precision balanced TPE-damped aluminium-platter
• Metal/MDF sandwich chassis floating on TPE suspension
• 9” carbon/aluminium tonearm with MM & MC capability
• Inverted EVO bearing design
• Arm bearing housing of solid ring type. The massive outside ring is open to avoid resonances
• Azimuth and VTA fully adjustable
• TPE damped counterweight
• Classic wooden chassis in 2 satin finishes (walnut, eucalyptus)
• Dustcover included

Technical Specifications
Speed: 33, 45, 78 (electronic speed change)
Drive principle: belt drive
Platter: 300 mm aluminium
Mains bearing: stainless steel
Wow & flutter: 33: ±0.10 % 45: ±0.09 %
Speed variance: 33: ±0.13 % 45: ±0.10 %
Signal to noise: 70dB
Tonearm: 9” carbon/aluminium sandwich tonearm
Effective arm length: 230 mm
Effective arm mass: 13.5 g
Overhang: 18 mm
Tracking force: 10 - 30mN
Included accessories: 15 volts DC / 0.8A power supply, dust cover
Power connection: 110/120 or 230/240 Volt - 50 or 60 Hz
Power consumption: 5 watt max / < 0.5 watt standby
Dimensions: 462 x 131 x 351 mm (WxHxD) lid closed
Weight: 10.5 kg net
