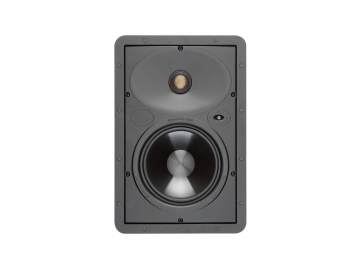

Monitor Audio, W165, Wall Speaker

Incorporating a 6 1/2" MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.


Frequency Response
60 Hz – 25 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
88.5 dB

Maximum SPL
107.4 dBA

Power Handling (RMS)
65 W

Recommended Amplifier Requirements
20 – 65 W

Drive Unit Complement
6 1/2" MMP II cone bass driver
1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille)
370 x 250 mm (149/16 x 913/16")

Overall Depth (Including Grille)
96 mm (33/4")

Mounting Depth
92 mm (35/8")

Cut-Out Hole Diameter
332 x 213 mm (131/16 x 83/8")

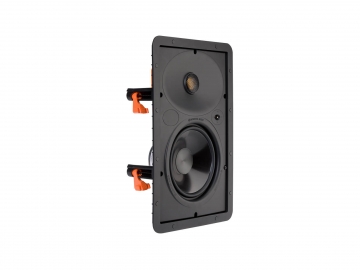

Fixing Type
6 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
2.21 kg (4 lb 14 oz)

Pre-Construction Bracket
WB6 Pre-Construction Bracket (Purple)
