JBL 710

General Specifications

HDMI eARC

Yes

HDMI Audio Return Channel

Yes

8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)

3

HDMI 2.1 enhanced gaming features

Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)

HDR 10+, Dolby Vision

Yes , Yes

File format

File format up to 48 kHz / 320kbps WMA

MP3 / MPEG-4 AAC

Pure Analog

Yes

EZ Set EQ

Yes

Front channel bi-amp

Yes

Digital signal processing

up to 24-bit/192kHz

Mains voltage

110 – 240V, 50–60Hz

Max. power consumption

500W

Standby power consumption

<0.5W

Audio Specifications

Channels

7.2

FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)

110W

Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

110 W RMS

Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

160 W RMS

Dimensions

Dimensions incl. feet and speaker terminals (H x W x D)

4.3” x 17.0” x 13.7” (109.2mm x 432.0mm x 347.6mm)

Weight

13.8lb (6.3kg)

Control and Connection Specifications

HDMI Input/Output

6/ 1

Wi-Fi

Yes (2.4/5GHz)

Bluetooth receiver

Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)

Digital Audio Input

1 Coax, 1 Optical, 1 USB

Stereo analog input

2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground

Pre-Out (single ended RCA)

Stereo Zone 2, Subwoofer 1, Subwoofer 2

Ethernet Port (RJ45)

Yes

.





300 7G:



 100 7G:






C250:

 General Specifications

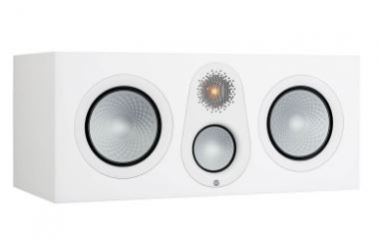

 Monitor Audio, SilverC2507G Silver Series Speaker

With the Silver C250 7G as part of your home cinema set-up, your favourite films sound better than ever. It brings the kind of big, cinematic sound you can both hear and feel, making those iconic movie moments unforgettable.

The soundtracks you love are now richer and more vibrant than ever, thanks to the Monitor Audio Silver C250 7G. It gives you clear, articulate dialogue of a cinema speaker set-up in a compact shape that’s perfectly at home in your living room. Needless to say, it features the latest Silver Series innovations, including new Rigid Surface Technology (RST) II for ultra-clear sound. As the centrepiece of your home theatre, it envelops you in superbly detailed sound that makes you feel like you’re right there in the middle of the action.


Copy the link below to see their youtube clip featuring the 7G range:

https://www.youtube.com/watch?v=4qgfjT8T5nU&pp=ygUaTW9uaXRvciBBdWRpbyBHcm91cCBzaWx2ZXI%3D


Key Features
1 x 1" (25 mm) C-CAM Gold Dome tweeter with Uniform Dispersion (UD) Waveguide II for more lifelike sound
1 x 3" (76 mm) C-CAM mid-range driver with Rigid Surface Technology (RST) II for extra clarity
2 x 5¼" (134 mm) C-CAM bass driver with RST II for extra clarity
Compact full 3-way design offering a wider coverage than traditional two way centre speakers for the best cinema experience in more seating locations
Perfect for all sizes of home cinema systems
Combining the best of the small Silver C150 6G and large Silver C350 6G, for high performance with a compact footprint
Sealed cabinet for precise sound even when installed close to a wall
Fits easily on shelves or wall units with the rubber stopper feet supplied
Choice of high quality finishes: Satin White, High Gloss Black, including real wood veneers Black Oak, Natural Walnut, Ash

System Format
3 - way

Frequency Response, In-Room (-6dB)
65 Hz - 35 kHz

Sensitivity (2.83v @ 1m)
88.5 dB

Nominal Impedance
8 Ohms

Minimum Impedance
3.9 Ohms @ 170 Hz

Maximum SPL (single, free-field)
110 dB

Power Handling (RMS)
200 W

Recommended Amplifier Requirements
80 - 200 W

Crossover Frequency
L.F: 650 Hz
M.F/ H.F: 3.3 kHz

Port Tuning Frequency
N/A

Bass Alignment
Sealed cabinet

Drive Unit Complement
2 x 5 1/4" C-CAM RST II bass driver
1 x 3" C-CAM RST II mid-range driver
1 x 1" (25 mm) C-CAM Gold Dome tweeter with UD Waveguide II

External Dimensions (Including Grille and Terminals (H x W x D))
206 x 481 x 272 mm (87/64 x 1816/64 x 1045/64")

External Dimensions (including Outrigger Feet and Spikes (H x W x D))
N/A

Weight (each)
10.6 kg (23 lb 6 oz)

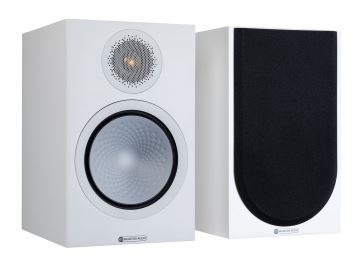

Monitor Audio Silver1007G Speaker

A beautifully crafted bookshelf speaker that’s a leap beyond the ordinary. Featuring Rigid Surface Technology and a new tweeter design, it’s built to eliminate distortion wherever possible. So even when you push it to the limit, it remains clear and controlled.

Imagine a bookshelf speaker that gives you a richer sound and deeper bass than your old floorstander. That’s what the Monitor Audio Silver 100 7G is capable of. On the outside, a choice of real-wood veneers lets you achieve the perfect look. Inside, a plethora of technologies come together, including metal coned drivers with Rigid Surface Technology, a new tweeter design and a new crossover system that intelligently combines the tweeter and bass driver. If all that just sounds like noise to you, don’t worry. You’ll hear the difference the moment you press play.


Copy the link below to see their youtube clip featuring the 7G range:

https://www.youtube.com/watch?v=4qgfjT8T5nU&pp=ygUaTW9uaXRvciBBdWRpbyBHcm91cCBzaWx2ZXI%3D


Key Features

1 x 1" (25 mm) C-CAM Gold Dome tweeter with Uniform Dispersion (UD) Waveguide II for more lifelike sound
1 x 8" (203 mm) C-CAM mid-bass driver with Rigid Surface Technology (RST) II for extra clarity
Has a full bass extension similar to a floorstanding speaker, covering the full range of a bass guitar
Excellent choice when space is at a premium but sound quality is very important
Rear-ported and tuned for ease of positioning without affecting sound performance
Perfect for smaller stereo music set-ups, or as front/rear channels in smaller home cinema systems
Bookshelf-friendly with rubber stopper feet supplied
Choice of high quality finishes: Satin White, High Gloss Black, including real wood veneers Black Oak, Natural Walnut, Ash

Monitor Audio, Silver3007G, Silver Series Speaker

The Silver 300 7G features real-wood veneers for a natural look, along with a newly developed Rigid Surface Technology (RST) II driver design for the most natural possible sound. It’s designed to reduce distortion, so when your music’s loud, it remains very, very clear.

The Silver 300 7G speakers incorporate some of our most advanced engineering yet, for sound that will leave you speechless. Much of the technology at play is hidden, but there’s still plenty to feast your eyes on. New grilles, driver trims and feet give an even more refined look, only accentuated by five different choices of wood veneer, including Natural Walnut, Ash, Black Oak, Satin White and High Gloss Black.


Copy the link below to see their youtube clip featuring the 7G range:

https://www.youtube.com/watch?v=4qgfjT8T5nU&pp=ygUaTW9uaXRvciBBdWRpbyBHcm91cCBzaWx2ZXI%3D



Key Features
1 x 1" (25 mm) C-CAM Gold Dome tweeter with Uniform Dispersion (UD) Waveguide II for more lifelike sound
1 x 3" (76 mm) C-CAM mid-range driver with Rigid Surface Technology (RST) II for extra clarity
2 x 6" (152 mm) C-CAM bass driver with RST II for extra clarity
3-way design with dedicated mid-range and bass drivers to deliver the ultimate refinement
Perfect for mid to large-sized room set-ups, either stereo or home cinema
Rear-ported and tuned for ease of positioning without affecting sound performance
Sturdy outrigger feet with a choice of spikes for carpets or rubber feet for hard floors
Add Silver AMS 7G Dolby Atmos® enabled speakers for your home cinema system
Choice of high quality finishes: Satin White, High Gloss Black, including real wood veneers Black Oak, Natural Walnut, Ash
