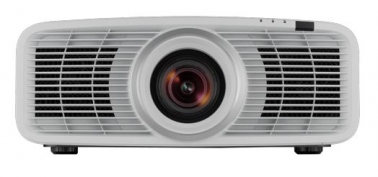

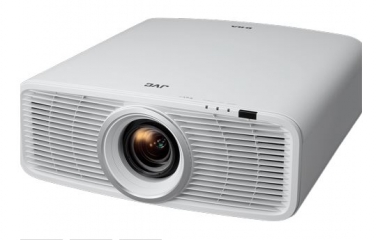

JVC D-ILA Projector DLA-NZ500 in White
Specification
Device
D-ILA Technology Yes
Brightness 2000 lm
HDR
Lens
HDMI
Connections
Picture Settings
Power & Environment
In the box
Dimensions & Weight
D-ILA Technology Yes
Chip Type 0.69-inch 4K D-ILA
Native Resolution 4096 x 2160
Number Of Chips 3
Display Resolution 4096 x 2160
Light Source
Laser [1] Yes
Type BLU-Escent Laser Diode
Life Time (Standard Mode) 20000 hours
Brightness 2000 lm
Dynamic Contrast ∞ : 1
Native Contrast 40000 : 1
Dynamic Light Power control Yes
Modes Low,High,Balance,Off
Manual Aperture Yes
Range -15 (stops down) to 0 (opens up)
100% REC 709 Yes
Color Bit Depth 12 bit
ISFccc Certification [2] Yes
HDR
HDR10 Yes
HDR10+ [3] Yes
Frame Adapt HDR [4] Yes
HLG Yes
Mastering Info Display Yes
Info data MaxCLL, MaxFALL , DML
HDR Picture Modes BT.709 / BT.2020 / DCI / HDR
Deep Black Tone Control Yes
Lens
Zoom 1.6 x
Throw Ratio 1.34 - 2.14 (16:9)
1.26 - 2.01 (17.9)
Diameter 80 mm
Material
Build 15-element, 11-group.
Lens Shift Yes
Range Horizontal ± 28 %
Range Vertical ± 70 %
Motorized Zoom Yes
Motorized Shift Yes
Motorized Focus Yes
Projection Display size (diagonal) 60 - 200 inch
Memory Function Yes
Number of user presets 5
Lens Cover Yes
HDMI
HDMI [6] Yes
Number of Inputs 2
Data Rate 32 Gbps
HDCP Version 2.3
4K60P signal input Yes
Video Signal range 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
PC Signal range 640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings)

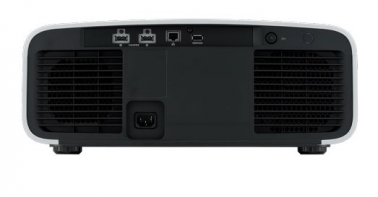

Connections
Connector
Power
Connector
LAN Yes
Connector RJ45
Connector
Service Yes
Connector USB (Type A) for firmware update or backup
Picture Settings
Picture Modes Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth 12 bit
Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, 3 Custom modes
Color Management 6-Axis adjustable CMS
MPC Yes
Filmmaker Mode [7] Yes
Auto Calibration Yes
Optional Probe needed Yes
Installation Mode Yes
Number of modes 5
Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes 4 Modes (A, B, C, D)
Control4 SDDP Yes
Power & Environment
Power Requirement AC100-240V, 50/60Hz
Projector in Use 280W
Standby Eco-mode: 0.25W
Network Standby 1.40W (LAN)
Switchover time Approx. 15 min. (To standby or networked standby; default)
Fan Noise 23 dB
Eco Mode Yes
Standby Timer Yes
Operating Temperature 5°C to 35°C
Operating Humidity 20% to 80%
Installation Angle Horizontal +/- 10 degree / Vertical +/- 10 degree
Installation Height Below 2,000 m
In the box
Remote Control Yes, RM-MH27
Quick Guide Yes
Power Cord Yes
Batteries Yes, 2 x AAA-size batteries
Dimensions & Weight
Product Dimensions (WxHxD) 450 x 180 x 479 (mm)
Product Weight 15 Kg
Package Dimensions (WxHxD) 585 x 361 x 600 (mm)
Package Weight 18.9 Kg
General Editing Note
General Note: Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
